3D Printed Ceramic Robotic Arms Offer Unparalleled Precision And Durability For Industrial

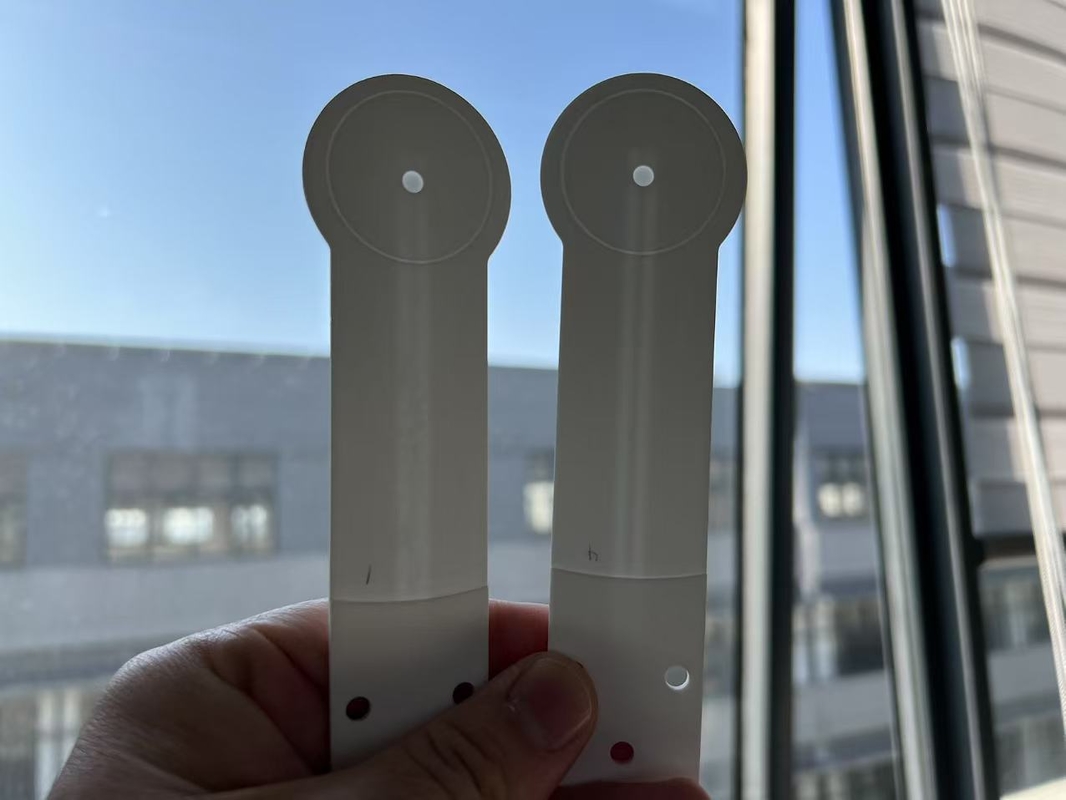

The 3D-printed alumina ceramic robotic arm is a high-performance automation solution specifically designed for semiconductor manufacturing, wafer handling, and automated production. Utilizing DLP/SLA 3D printing technology, it is manufactured as a single integrated component from 99.9% high-purity alumina ceramic (Al₂O₃). With exceptional properties including ultra-high hardness, thermal resistance, corrosion resistance, and low thermal expansion coefficient, it is ideal for vacuum environments, harsh chemical conditions, and high-temperature processes, ensuring high cleanliness and stability in wafer handling applications.

Key Applications

✅ Semiconductor wafer handling: Vacuum gripping, positioning and transfer of 12-inch wafers
✅ Etching & deposition equipment: Plasma-resistant for PVD/CVD processes
✅ High-temperature operations: Continuous operation at 300°C+
✅ Automated production lines: Compatible with end-of-arm tooling (EOAT) for enhanced productivity

Competitive Advantages

Technical Specifications

• Material Purity: ≥99.9% Al₂O₃

• Printing Technology: DLP photopolymerization (±20μm precision)

• Payload Capacity: 5kg (standard)/10kg (heavy-duty)

• Repeatability: ±0.01mm positioning accuracy

• Temperature Range: -50°C to 300°C

• Surface Roughness: Ra≤0.1μm (polishable to 0.05μm)

• Vacuum Compatibility: Integrated air channels (0.5μm filtration)

Manufacturing Process

1. 3D Modeling: CAD design + wafer handling path simulation

2. Slurry Preparation: Nano-alumina + photopolymer resin mix (55-58% solid content)

3. DLP Printing: Layer-by-layer curing (20μm thickness)

4. High-Temp Sintering: 1650°C densification (117-122% shrinkage compensation)

5. Precision Machining: Laser trimming + CNC grinding (±0.02mm flatness)

6. Quality Control: X-ray inspection + leak testing

Operating Instructions

⚠ Important Notes:

• Autoclave sterilize (121°C) before first use

• Avoid hydrofluoric acid (HF) exposure

• Monthly joint inspection for wear and vacuum integrity

• Use ceramic end-effectors to prevent wafer damage
