Silicon Nitride Ceramic Irregular Structural Block - Multi-Functional High-Temperature Resistant Industrial Ceramic Component

Silicon Nitride Ceramic Irregular Structural Block - Multi-functional High-Temperature Resistant Industrial Ceramic Component

Product Overview

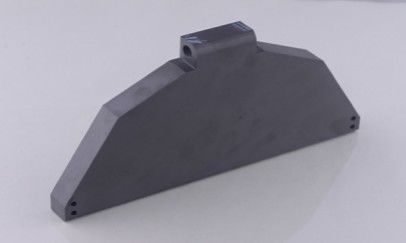

This product is a silicon nitride ceramic irregular structural block manufactured using hot isostatic pressing sintering technology. It features a uniform dark gray matte texture, with a finely uniform matte pattern achieved through precision sandblasting treatment. The product adopts an innovative irregular polygonal design, with accurately positioned rectangular protrusions on the top and symmetrically distributed mounting holes along the edges to ensure convenient and stable installation. This unique design meets both the structural strength requirements in complex working conditions and the engineering needs of multi-functional integration.

Primary Applications

• High-end Equipment Manufacturing: High-temperature insulation bases for special mechanical equipment, support blocks for precision transmission systems
• Aerospace: Thermal insulation components for engine test platforms, instrument mounting bases for spacecraft
• New Energy Sector: Fuel cell stacking pressure plates, insulation support components for electrolyzers
• Semiconductor Manufacturing: Adjustment pads for lithography machine platforms, carrier bases for vacuum coating equipment
• Scientific Research: Fixtures for high-low temperature testing devices, vibration isolation platforms for precision measuring instruments

Product Advantages

→ Exceptional Temperature Resistance: Continuous operating temperature up to 1350°C, short-term resistance up to 1500°C
→ Superior Mechanical Properties: Compressive strength ≥2500 MPa, flexural strength ≥700 MPa
→ Excellent Wear Resistance: Vickers hardness ≥1550 HV, wear coefficient <1×10⁻⁷ mm³/N·m
→ Outstanding Insulation Performance: Dielectric strength ≥25 kV/mm, volume resistivity >10¹⁶ Ω·cm
→ Exceptional Thermal Shock Resistance: Withstands sudden temperature changes of 1000°C without cracking

Technical Specifications

Manufacturing Process

Nanoscale powder pretreatment → Binder plasticization → Isostatic pressing molding → Thermal debinding → Hot isostatic pressing sintering → Ultrasonic cleaning → 3D inspection → Diamond precision machining → Non-destructive testing → Vacuum packaging

Usage Guidelines

1. Use specialized positioning fixtures during installation to ensure accurate alignment of all mounting holes

2. Recommend using high-temperature specific fasteners with preload torque not exceeding 35 N·m

3. When used in high-temperature conditions, recommend using ceramic fiber gaskets

4. Avoid direct contact with molten metals to prevent metal penetration

5. Regularly perform ultrasonic cleaning to maintain surface cleanliness

Service Commitment

• 36-month extended quality assurance period
• Complimentary installation guidance and technical training
• Support for full product lifecycle quality tracking
• 48-hour expedited service for emergency orders
• Establishment of dedicated customer technical files

Frequently Asked Questions

Q: How is the dimensional stability of the product?
A: Testing shows dimensional change rate <0.02% after 1000 hours at 1000°C

Q: Is custom complex structure supported?
A: Supports 3D modeling customization, with maximum processable size of 300×300×150 mm for complex structural parts

Q: How does it perform under extreme temperature cycling conditions?
A: The product undergoes 1000 thermal cycles from -196°C to 1200°C without any performance degradation

Q: Does the matte surface treatment affect usage precision?
A: The matte treatment only affects surface appearance, with key mounting surfaces guaranteed to meet ±0.01 mm precision requirements

Technical Innovation:
This product utilizes gradient sintering technology to create a grain gradient distribution structure within the material, ensuring both high surface hardness and improved overall impact resistance. The top rectangular protrusions employ a bionic support structure design, enhancing load-bearing capacity while reducing weight. The symmetrical holes use special chamfering processes to effectively prevent stress concentration, increasing the product's service life by more than 3 times compared to traditional structures under extreme working conditions.
