High-Performance Silicon Nitride Ceramic Cylinder With Top Groove For Industrial Applications

High-Performance Silicon Nitride Ceramic Cylinder with Top Groove for Industrial Applications

Product Description

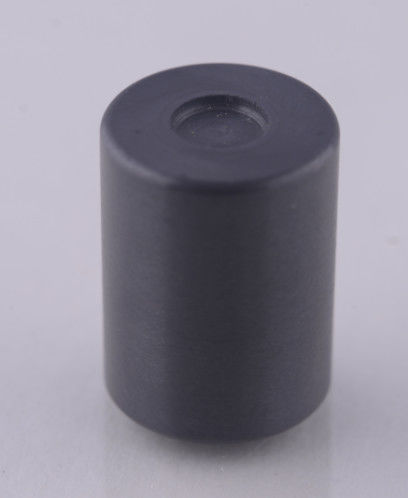

This industrial component is precision-engineered from high-performance Silicon Nitride Ceramic, featuring a cylindrical geometry with a uniform matte finish and a precision-machined circular groove on its top surface. The part exhibits the characteristic dark gray color of silicon nitride, with a dense and homogeneous microstructure that underscores superior engineering ceramic manufacturing. As an advanced technical ceramic, silicon nitride is renowned for its exceptional hardness, outstanding wear resistance, excellent thermal shock resistance, and stable chemical properties, making it ideally suited for demanding industrial applications.

Key Features & Advantages

• Exceptional Mechanical Properties: Vickers hardness exceeding Hv1500 and a flexural strength ≥ 650 MPa.

• Superior Wear Resistance: Low friction coefficient (<0.15) and a service life 5-10 times longer than traditional metal materials.

• Excellent High-Temperature Stability: Capable of long-term, stable operation in environments up to 1200°C, with outstanding thermal shock resistance.

• Stable Chemical Inertia: Resistant to acids, alkalis, and non-reactive with most molten metals.

• Precision Engineering: The top groove can be machined to tight tolerances of ±0.01 mm, ensuring precise assembly.

Typical Applications

• Mechanical Engineering: High-speed bearing rollers, mechanical seal rings, precision guideway sliders.

• Semiconductor Manufacturing: Vacuum end-effector grippers, wafer chucks, etching equipment components.

• Automotive Industry: Turbocharger rotors, engine nozzles, braking system components.

• Metrology & Instrumentation: Precision measurement platforms, sensor load-bearing elements, optical instrument bases.

Specification Table

Manufacturing Process

High-Purity Powder Formulation → Spray Drying → Dry Pressing → Cold Isostatic Pressing (CIP) → Sintering under Controlled Atmosphere → CNC Grinding → Precision Groove Machining → Non-Destructive Testing → Dimensional Inspection → Cleaning & Packaging.

Usage Instructions

1. Installation Guidance: A clearance fit of 0.01 - 0.03 mm is recommended when assembling with metal components.

2. Operational Environment: Avoid direct contact with hydrofluoric acid and hot, concentrated alkaline solutions.

3. Cleaning & Maintenance: Ultrasonic cleaning with organic solvents is recommended; avoid mechanical scraping.

4. Storage Conditions: Store in a dry and clean environment to prevent physical impact.

Service & Support

We offer an 18-month product quality warranty, supported by a dedicated technical team. Individual customer service files are maintained for proactive follow-up. Emergency technical support is guaranteed within a 24-hour response time.

Frequently Asked Questions (FAQ)

Q1: How does the wear resistance of this silicon nitride cylinder perform?
A1: Under identical operating conditions, its wear resistance is 8-10 times greater than bearing steel, making it particularly suitable for high-wear environments.

Q2: Can you manufacture custom sizes?
A2: Yes, we support custom manufacturing. Maximum dimensions can reach 200 mm in outer diameter and 150 mm in height.

Q3: What is the service life under high-temperature and high-speed conditions?
A3: Under conditions of 800°C and 5000 rpm rotational speed, the service life can exceed 10,000 hours.
