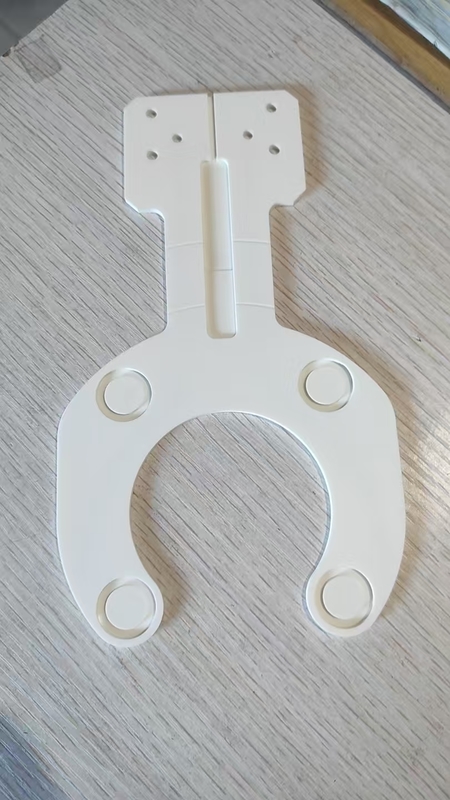

3D-Printed Ceramic Arm High-Strength And High-Temperature Resistance

3D-printed ceramic robotic arms are high-performance robotic components manufactured using advanced additive manufacturing technology. Made primarily from alumina (Al₂O₃) or silicon carbide whisker-reinforced ceramics, they offer exceptional mechanical strength, high-temperature resistance, and chemical stability. This technology combines the flexibility of 3D printing with the superior properties of ceramic materials, making them ideal for high-precision, high-load industrial automation applications.

• Industrial Automation: End-effectors for robotic arms in high-temperature or corrosive environments
• Semiconductor Manufacturing: Wafer handling and precision assembly
• Medical Robotics: Surgical instrument arms and high-precision positioning systems
• Aerospace: High-temperature robotic arms for extreme environment operations
• Scientific Research: Customized robotic arm structures with optimized mechanical properties

• High Strength (Silicon carbide whisker-reinforced, flexural strength up to 300-400 MPa)
• High-Temperature Resistance (Long-term use at 1600°C+)
• Lightweight (Density 3.6-3.9 g/cm³, lighter than metal arms)
• Corrosion Resistance (Resistant to acids, alkalis, and oxidation)
• Customizable Design (3D printing enables complex, integrated structures)

1. Material Preparation: Ball milling of alumina powder + silicon carbide whiskers
2. 3D Printing: Direct Ink Writing (DIW) or Stereolithography (SLA)
3. Debinding: Gradual heating to remove organic binders
4. High-Temperature Sintering: Densification at 1600°C-1800°C
5. Precision Machining: CNC grinding and polishing for surface refinement

• Technical Support (3D model optimization advice)
• Customization (Special sizes and structural designs available)
