High Toughness Zirconia Ceramic Flange Gasket with Excellent Wear Resistance and Ultra-precise Dimension Control

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:

Thermal Conductivity:	20 To 30 W/m·K	Dimensional Tolerance:	±0.001 Mm
Operating Temperature:	Continuous ≤1600℃	Dielectric Constant:	9.8
Hardness:	Mohs Scale 9	Bending Strength:	≥1100MPa

Thermal Conductivity:	20 To 30 W/m·K
Dimensional Tolerance:	±0.001 Mm
Operating Temperature:	Continuous ≤1600℃
Dielectric Constant:	9.8
Hardness:	Mohs Scale 9
Bending Strength:	≥1100MPa

High Toughness Zirconia Ceramic Flange Gasket with Excellent Wear Resistance and Ultra-precise Dimension Control

Product Introduction

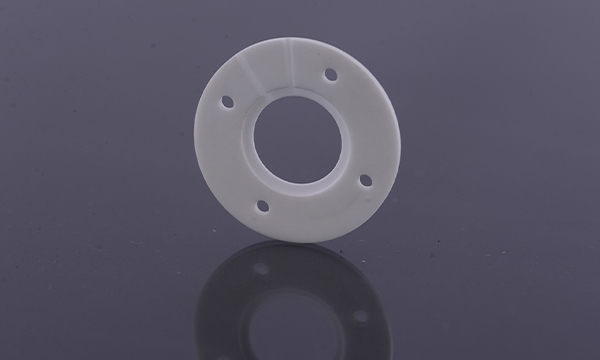

This product is a disc-type perforated zirconia ceramic flange gasket, fabricated from high-purity zirconia (ZrO₂) powder via dry pressing, high-temperature sintering and CNC precision grinding. Designed as circular flange structure with evenly spaced mounting holes and central hollow bore, it features high density and ultra-smooth compact surface. Benefiting from phase transformation toughening property of zirconia material, it combines high strength, outstanding fracture toughness and superior wear & chipping resistance, serving as specialized ceramic component for sealing, positioning and wear prevention on precision industrial equipment.

Application Fields

Widely applied in automation machinery, precision motors, semiconductor equipment, lithium-ion battery production equipment and pump & valve assemblies. It works as mounting flange spacer, wear-resistant limit washer, insulating sealing gasket for positioning fixation, anti-friction buffering, corrosion isolation and pressure sealing.

Core Advantages

High Toughness & Impact Resistance: Far higher toughness than alumina ceramics, resistant to edge chipping and cracking under alternating impact loads;
Excellent Wear & Corrosion Resistance: Low friction coefficient, stable against acid, alkali and salt erosion for long service life under harsh chemical environments;
Ultra-precise Dimension Control: Tolerance of outer diameter and mounting holes within ±0.01mm for perfect assembly fitting;
Low Thermal Expansion & Insulation: Minimal thermal deformation under fluctuating temperature, reliable electrical insulation to avoid leakage risk.

Specification Parameters

Item	Parameter
Material	3Y-TZP Zirconia Ceramic
Density	≥6.0g/cm³
Bending Strength	≥1100MPa
Max Working Temp	≤800℃
Hole Dimension Tolerance	±0.01mm
Surface Roughness	Ra≤0.8μm

Production Process

Raw Material Mixing & Granulation → Disc Dry Press Forming → High-Temp Sintering at 1450℃ → CNC Internal & External Grinding → Precision Hole Drilling → Mirror Polishing → Full Inspection in Cleanroom → Final Packing

Operating Instructions

Clean dust and impurities on flange contact surface before installation;
Tighten bolts evenly to avoid concentrated pressure causing ceramic crack;
Prevent drastic thermal shock from rapid heating or cooling.

After-sales Service

Customization available per customer drawings or samples with free prototype sampling service; all products fully inspected before delivery with test report attached, return & replacement available for non-artificial quality defects; lifelong technical support on product selection.

FAQ

Q: What are advantages of zirconia gasket vs alumina gasket?
A: Zirconia owns superior toughness and anti-break performance, its service life is 2~3 times longer than alumina, ideal for frequently vibrating working conditions.
Q: Can we customize the number of mounting holes?
A: Yes, hole diameter, hole layout and disc thickness can be customized as your requirement.
